| MACHINE & LOAD HANDLING |
| Machine Type |

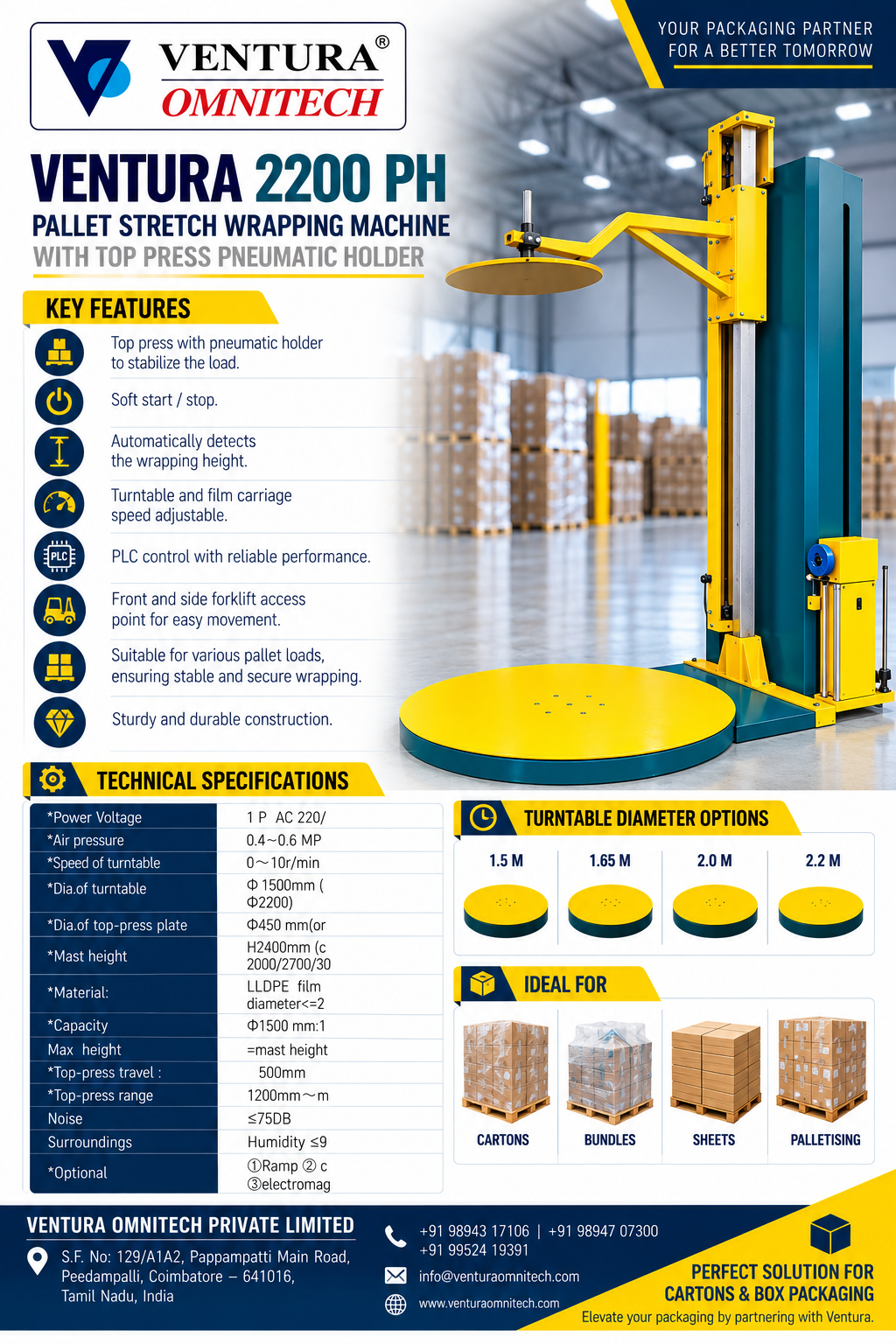

Semi-Automatic Pallet Stretch Wrapper with Pneumatic Top Press |
Combines reliable stretch wrapping with pneumatic load stabilization for secure and consistent packaging. |
| Turntable Diameter |
1,500 – 1,650 mm |
Suitable for handling different pallet dimensions and load configurations. |
| Turntable Height |
80 – 90 mm (Low Profile) |
Low-profile design makes pallet loading easier and improves forklift accessibility. |
| Turntable Speed |
0 – 12 RPM (Variable with Soft Start/Stop) |
Adjustable speed provides controlled wrapping and helps protect unstable loads. |
| Maximum Load Weight |
Up to 2,000 kg |
Handles heavy palletized products for demanding industrial applications. |
| Maximum Load Height |
2,000 – 2,400 mm |
Accommodates a wide range of pallet load heights. |
| Maximum Pallet Size |
1,200 mm × 1,200 mm |
Suitable for standard industrial pallet sizes. |
| Frame Construction |
Heavy-duty steel welded frame |
Provides a strong, durable structure for continuous industrial operation. |
| PNEUMATIC TOP PRESS SYSTEM |
| Top Press Mechanism |
Pneumatic Cylinder with Top Plate |
Stabilizes the load during wrapping and reduces the risk of load movement. |
| Top Plate Size |
Approximately 900 mm diameter (Customizable) |
Provides effective load contact and can be adapted to application requirements. |
| Top Press Air Pressure |
0.4 – 0.7 MPa (Clean, dry compressed air) |
Provides controlled pneumatic pressure for secure load stabilization. |
| FILM & STRETCHING SYSTEM |
| Film Type |
LLDPE Stretch Film |
Provides reliable containment and protection of palletized products. |
| Film Width |
500 mm |
Suitable for efficient coverage of standard pallet loads. |
| Film Thickness |
15 – 35 microns |
Allows film selection according to load weight and packaging requirements. |
| Pre-Stretch Ratio |
250% – 300% (Powered Pre-Stretch) |
Reduces stretch film consumption while maintaining effective load containment. |
| Film Carriage Speed |
Variable and adjustable up/down |
Provides flexible control over wrapping speed and film application. |
| Wrap Cycles |
Adjustable top wraps, bottom wraps and total cycles |
Enables customized wrapping patterns for different products and load conditions. |
| SENSING & CONTROL |
| Load Height Detection |
Photoelectric Sensor |
Automatically detects the load height for consistent film application. |
| Control System |
PLC Controlled with Digital Panel or Buttons |
Provides reliable machine control and simple operation. |
| Adjustable Settings |
Wrap count, film tension, carriage speed and top press time |
Allows operators to optimize the wrapping process for different loads. |
| SAFETY FEATURES |
| Emergency Stop |
Yes |
Allows immediate machine stoppage during an emergency. |
| Safety Features |
Emergency stop, interlocks, safety covers and overload protection |
Improves operator safety and protects the machine during operation. |
| POWER & PNEUMATIC REQUIREMENTS |
| Power Supply |
220 – 240 V, Single Phase, 50/60 Hz |
Suitable for standard industrial electrical supply. |
| Power Consumption |
1.5 – 2.0 kW |
Provides efficient machine operation with controlled power consumption. |
| Air Supply Requirement |
0.4 – 0.7 MPa, 0.1 – 0.3 m³/min |
Provides the required pneumatic power for the top press system. |
| Motor Type |
AC Motors (Turntable & Carriage) |
Reliable motor drive for smooth and consistent machine operation. |
| MACHINE DIMENSIONS & WEIGHT |
| Machine Dimensions (L × W × H) |
Approx. 2,400 mm × 1,500 mm × 2,400 mm |
Compact industrial footprint suitable for efficient packaging-line utilization. |
| Machine Weight |
600 – 800 kg |
Heavy-duty construction provides stability during wrapping operation. |
