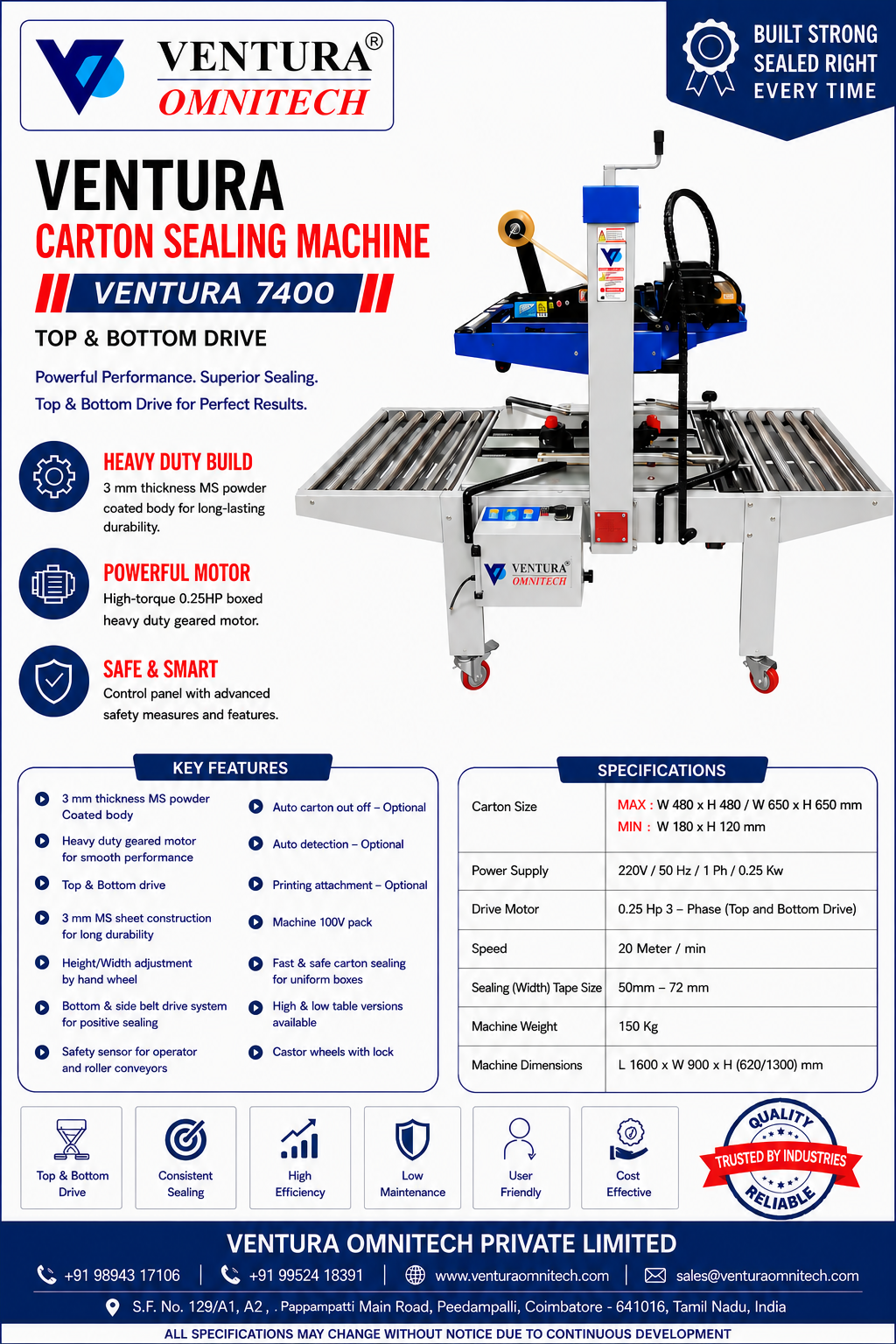

VENTURA TOP & BOTTOM DRIVE MODEL
VENTURA 7400
Description:
| MACHINE & CARTON HANDLING | ||
| Machine Type | Semi-Automatic / Fully Automatic Carton Sealing Machine (Top & Bottom Drive) | Provides synchronized top and bottom carton sealing for reliable packaging performance. |
| Drive System | Top and Bottom Drive Mechanism for Synchronized Tape Application | Ensures even and secure tape application on both top and bottom carton surfaces. |
| Carton Size Range | L: 150–600 mm × W: 150–500 mm × H: 100–500 mm | Suitable for medium to large carton sizes and varied packaging requirements. |
| TAPE & SEALING PERFORMANCE | ||
| Tape Type & Width | BOPP or Kraft Tape; Width: 48 mm or 72 mm | Supports both BOPP and Kraft tapes for flexible carton sealing applications. |
| Tape Thickness | 38–55 microns | Compatible with the specified tape thickness range for consistent sealing. |
| Tape Heads | Top and Bottom Tape Heads with Adjustable Tension Controls | Adjustable tension and guides support reliable tape application across different carton sizes. |
| Sealing Speed | Up to 25 cartons per minute | High throughput helps improve productivity on busy packaging lines. |
| CONTROL & OPERATION | ||
| Control System | Manual or PLC Control Depending on model |
Provides flexibility to suit different levels of packaging automation. |
| Tape Loading | Easy Tape Loading and Replacement | Reduces tape-change time and helps minimize packaging downtime. |
| MACHINE CONSTRUCTION & SAFETY | ||
| Frame Material | Powder-Coated Steel Frame | Provides stability and durable construction for industrial packaging use. |
| Safety Features | Emergency Stop Switch and Safety Guards | Helps protect operators during machine operation. |
| Operating Temperature | 0°C to 40°C | Specified operating range for reliable machine performance. |
| Noise Level | Below 70 dB(A) | Supports comparatively low-noise operation. |
| POWER & MACHINE SPECIFICATIONS | ||
| Power Supply | 220 V / 50 Hz Single Phase or 380 V / 50 Hz 3 Phase | Flexible power configurations support different installation requirements. |
| Machine Dimensions | Approx. L 1300 mm × W 900 mm × H 1400 mm | Compact design allows convenient integration into manual or automated packaging workflows. |
| Machine Weight | Around 150–200 kg | Robust construction provides stability for continuous carton sealing operations. |
