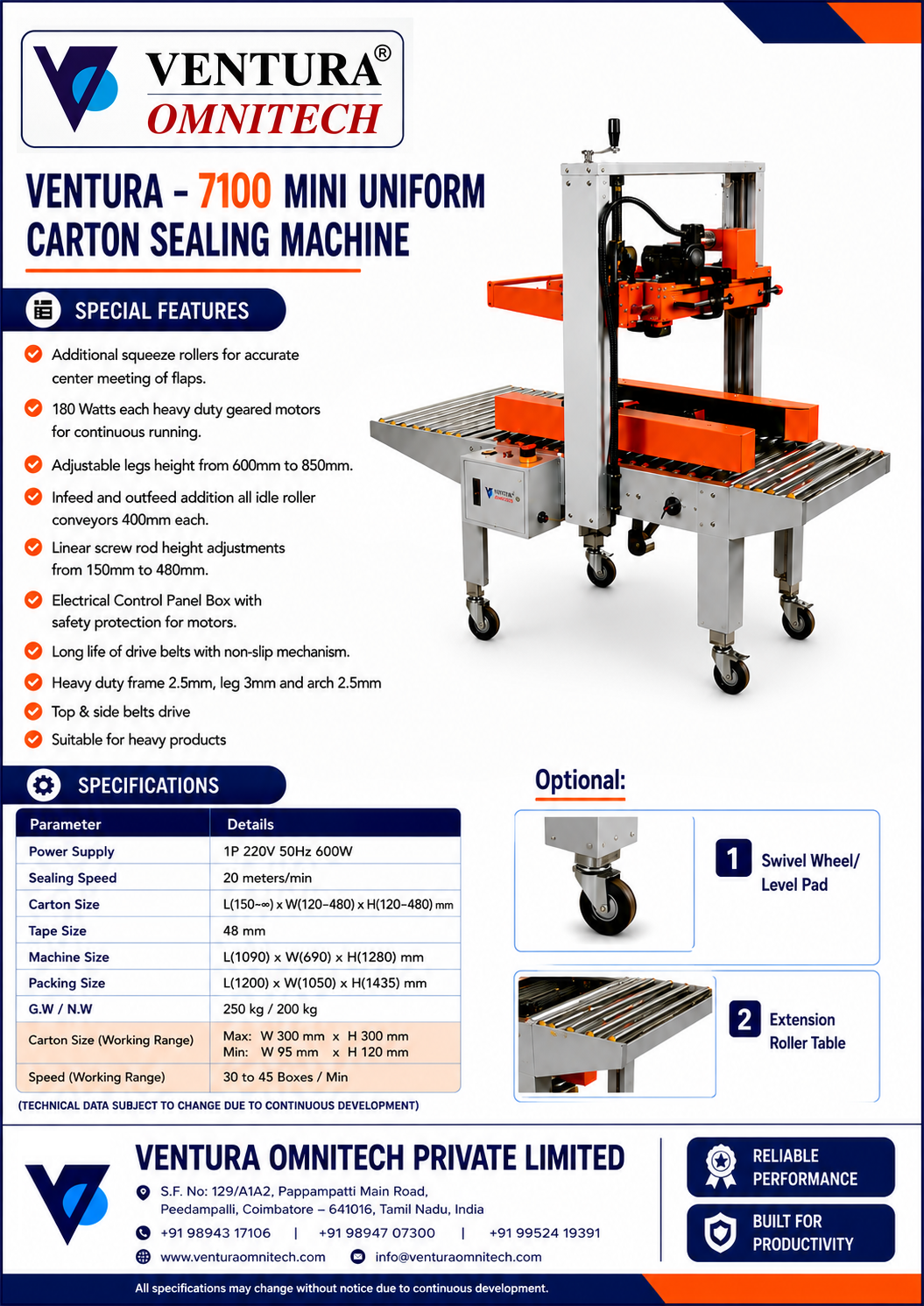

VENTURA SIDE DRIVE MODEL
VENTURA 7100
Description:
| MACHINE & CARTON HANDLING | ||
| Machine Type | Semi-Automatic / Fully Automatic Carton Sealing Machine (Side Drive) | Flexible carton sealing solution available in semi-automatic or fully automatic configurations. |
| Drive System | Side Drive Mechanism for Tape Head Movement | Provides smooth and consistent tape application on cartons. |
| Carton Size Range | L: 150–600 mm × W: 150–500 mm × H: 100–500 mm | Suitable for a wide range of carton dimensions and medium-sized packages. |
| TAPE & SEALING PERFORMANCE | ||
| Tape Type & Width | BOPP or Kraft Tape; Width: 48 mm or 72 mm | Supports both BOPP and Kraft adhesive tapes for versatile carton sealing. |
| Tape Thickness | 38–55 microns | Compatible with the specified tape thickness range. |
| Tape Head | Adjustable Side Drive Tape Head with Tension Control | Adjustable tension and guide support consistent tape application for different carton sizes. |
| Sealing Speed | Up to 20 cartons per minute | Supports improved productivity in continuous carton sealing operations. |
| CONTROL & OPERATION | ||
| Control System | Manual or PLC Control Depending on model |
Provides flexibility according to the required level of packaging automation. |
| Tape Loading | Easy Tape Loading and Replacement | Simplifies tape changes and helps minimize downtime. |
| MACHINE CONSTRUCTION & SAFETY | ||
| Frame Material | Powder-Coated Steel Frame | Provides durability and stability during carton sealing operations. |
| Safety Features | Emergency Stop Switch and Safety Guards | Helps protect operators during machine operation. |
| Operating Temperature | 0°C to 40°C | Specified operating range for reliable machine performance. |
| Noise Level | Below 70 dB(A) | Supports comparatively low-noise operation. |
| POWER & MACHINE SPECIFICATIONS | ||
| Power Supply | 220 V / 50 Hz Single Phase or 380 V / 50 Hz 3 Phase | Flexible power options support different installation requirements. |
| Machine Dimensions | Approx. L 1200 mm × W 800 mm × H 1400 mm | Compact footprint supports standalone operation or integration into packaging lines. |
| Machine Weight | Around 100–150 kg | Compact machine configuration suitable for carton sealing applications. |
