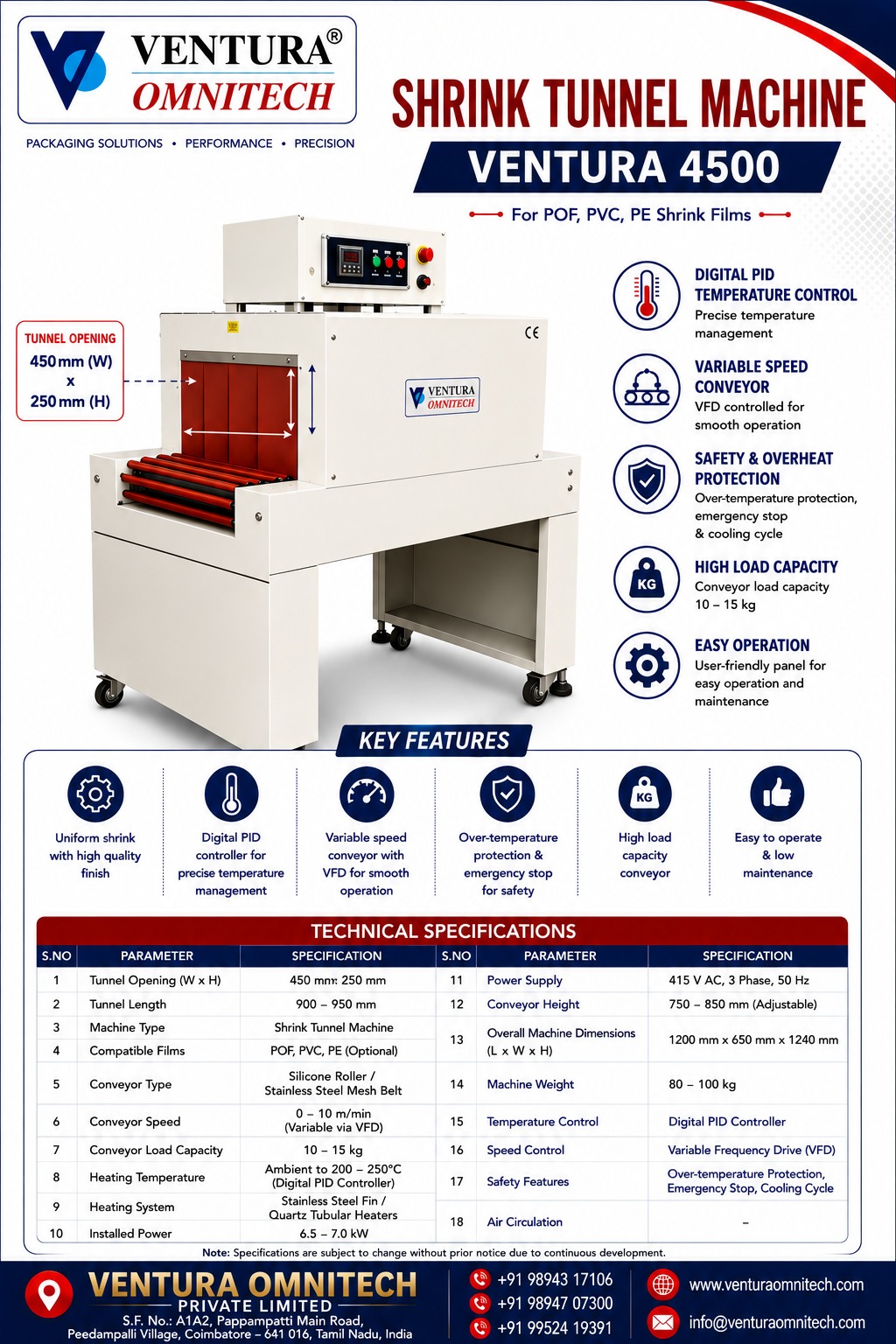

MACHINE & FILM SPECIFICATIONS
|
| Model |
VENTURA 4500 |
Shrink tunnel machine designed for uniform shrink wrapping with a high-quality finish. |
| Machine Type |
Shrink Tunnel Machine |
Provides controlled heat shrinking for consistent and attractive packaging results. |
| Compatible Films |
POF, PVC, PE (Optional) |
Supports multiple shrink film options for different packaging requirements. |
| Tunnel Opening (W × H) |
450 mm × 250 mm |
Defined tunnel opening supports the specified product packaging range. |
| Tunnel Length |
900 – 950 mm |
Provides sufficient heating zone for controlled shrink processing. |
|
CONVEYOR & LOAD HANDLING
|
| Conveyor Type |
Silicone Roller / Stainless Steel Mesh Belt |
Conveyor options support reliable product movement through the heating tunnel. |
| Conveyor Speed |
0 – 10 m/min (Variable via VFD) |
Variable speed enables controlled processing for different film and product requirements. |
| Conveyor Load Capacity |
10 – 15 kg |
Supports the specified product load range during shrink processing. |
| Conveyor Height |
750 – 850 mm (Adjustable) |
Adjustable conveyor height supports convenient integration with packaging lines. |
|
HEATING & TEMPERATURE CONTROL
|
| Heating Temperature |
Ambient to 250°C (Digital PID Controller) |
Wide temperature range with precise PID control supports consistent shrink results. |
| Heating System |
Stainless Steel Fin / Quartz Tubular Heaters |
Heating system is designed to provide controlled and consistent heat for shrink processing. |
| Temperature Control |
Digital PID Controller |
Precise temperature management helps maintain consistent packaging quality. |
| Speed Control |
Variable Frequency Drive (VFD) |
VFD control provides smooth and adjustable conveyor operation. |
|
POWER, SAFETY & MACHINE DIMENSIONS
|
| Installed Power |
6.5 – 7.0 kW |
Provides the required heating and conveyor power for shrink tunnel operation. |
| Power Supply |
415 V AC, 3 Phase, 50 Hz |
Designed for standard three-phase industrial power supply. |
| Safety Features |
Over-temperature protection, emergency stop, cooling cycle |
Built-in safety functions help protect operators and support reliable machine operation. |
| Overall Machine Dimensions (L × W × H) |
1200 mm × 650 mm × 1240 mm |
Defined dimensions assist with installation planning and packaging-line integration. |
| Machine Weight |
80 – 100 kg |
Provides the required machine weight information for handling and installation planning. |
|
KEY FEATURES & BENEFITS
|
| Shrink Quality |
Uniform shrink with high-quality finish |
Helps achieve consistent and attractive shrink-wrapped packaging. |
| Operation |
Easy to operate and low maintenance |
User-friendly operation simplifies daily production and maintenance activities. |
| Load Handling |
High-load-capacity conveyor |
Supports reliable movement of products within the specified conveyor load capacity. |
