MACHINE & APPLICATION
|
| Model |

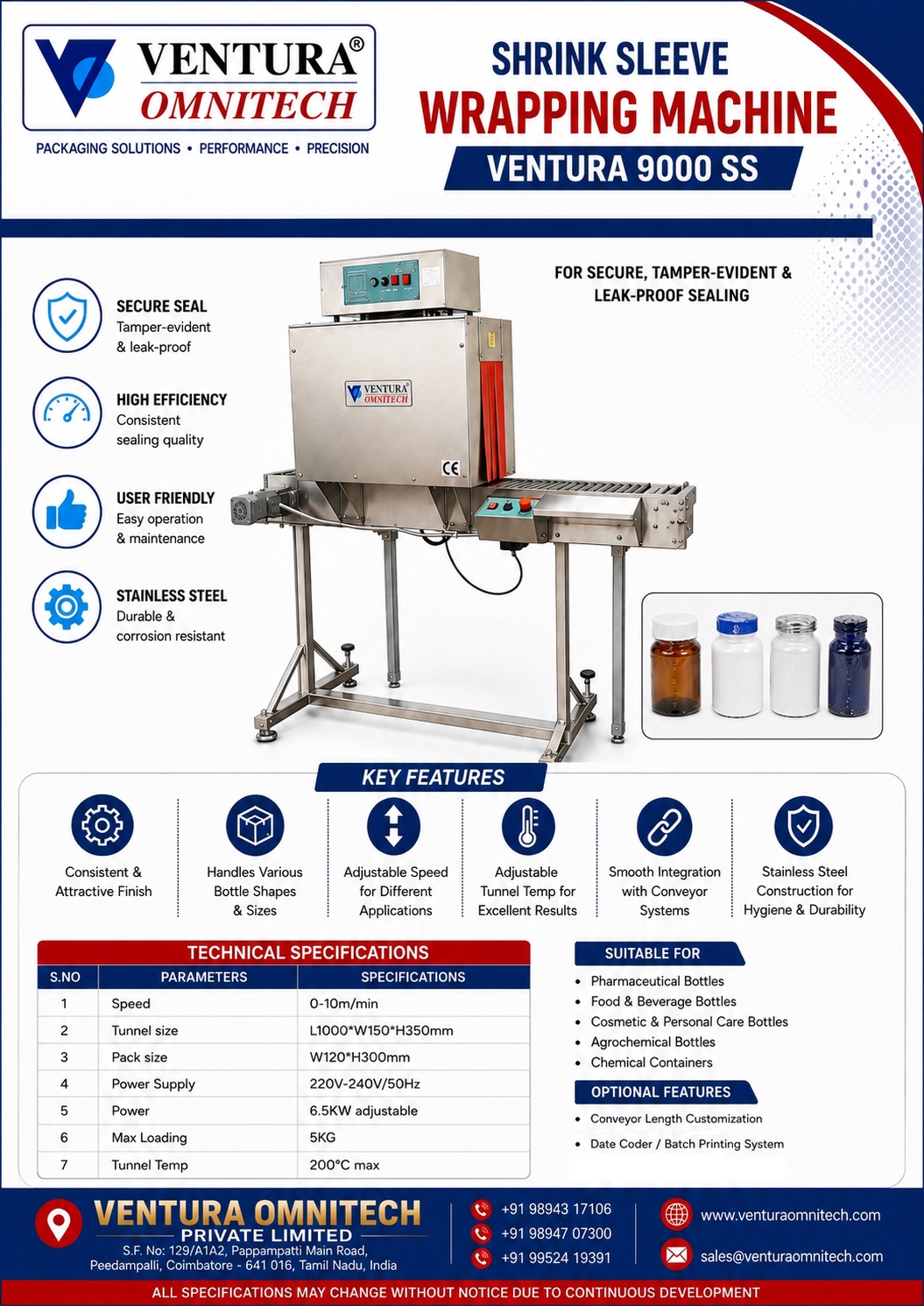

VENTURA 9000 SS |
Shrink sleeve wrapping machine designed for secure, tamper-evident and leak-proof sealing. |
| Application |
Shrink sleeve wrapping for bottles and containers |
Provides consistent sealing and attractive finishing for a variety of container applications. |
| Suitable For |
Pharmaceutical bottles, food & beverage bottles, cosmetic & personal care bottles, agrochemical bottles, chemical containers |
Versatile solution for multiple industries requiring secure sleeve wrapping and sealing. |
|
PERFORMANCE & PACKAGING SPECIFICATIONS
|
| Speed |
0–10 m/min |
Adjustable speed supports different application requirements and controlled wrapping. |
| Tunnel Size |
L1000 × W150 × H350 mm |
Defined tunnel dimensions support consistent shrink sleeve processing. |
| Pack Size |
W120 × H300 mm |
Suitable for the specified bottle and container packaging range. |
| Max Loading |
5 kg |
Supports handling of packages within the specified maximum loading capacity. |
|
HEATING & CONTROL
|
| Tunnel Temperature |
200°C max |
Adjustable tunnel temperature supports controlled shrink sleeve processing for different applications. |
| Power Supply |
220V–240V / 50Hz |
Designed for standard single-phase electrical supply. |
| Power |
6.5 kW adjustable |
Adjustable power supports controlled heating performance according to application needs. |
|
CONSTRUCTION & KEY FEATURES
|
| Construction |
Stainless steel construction |
Durable and corrosion-resistant construction supports hygiene and long-term use. |
| Sealing Quality |
Secure, tamper-evident and leak-proof sealing |
Provides secure packaging with consistent sealing quality and attractive finish. |
| Operation & Maintenance |
User-friendly operation and maintenance |
Simple operation helps improve usability and maintenance efficiency. |
| Conveyor Integration |
Smooth integration with conveyor systems |
Supports easy incorporation into existing or customized material handling lines. |
| Packaging Finish |
Consistent and attractive finish |
Helps deliver uniform sleeve wrapping and an improved product presentation. |
|
OPTIONAL FEATURES
|
| Conveyor Length |
Conveyor length customization |
Allows the conveyor arrangement to be tailored to specific line layouts. |
| Date / Batch Coding |
Date coder / batch printing system |
Optional coding integration supports product identification and batch information requirements. |
