| Machine Name |

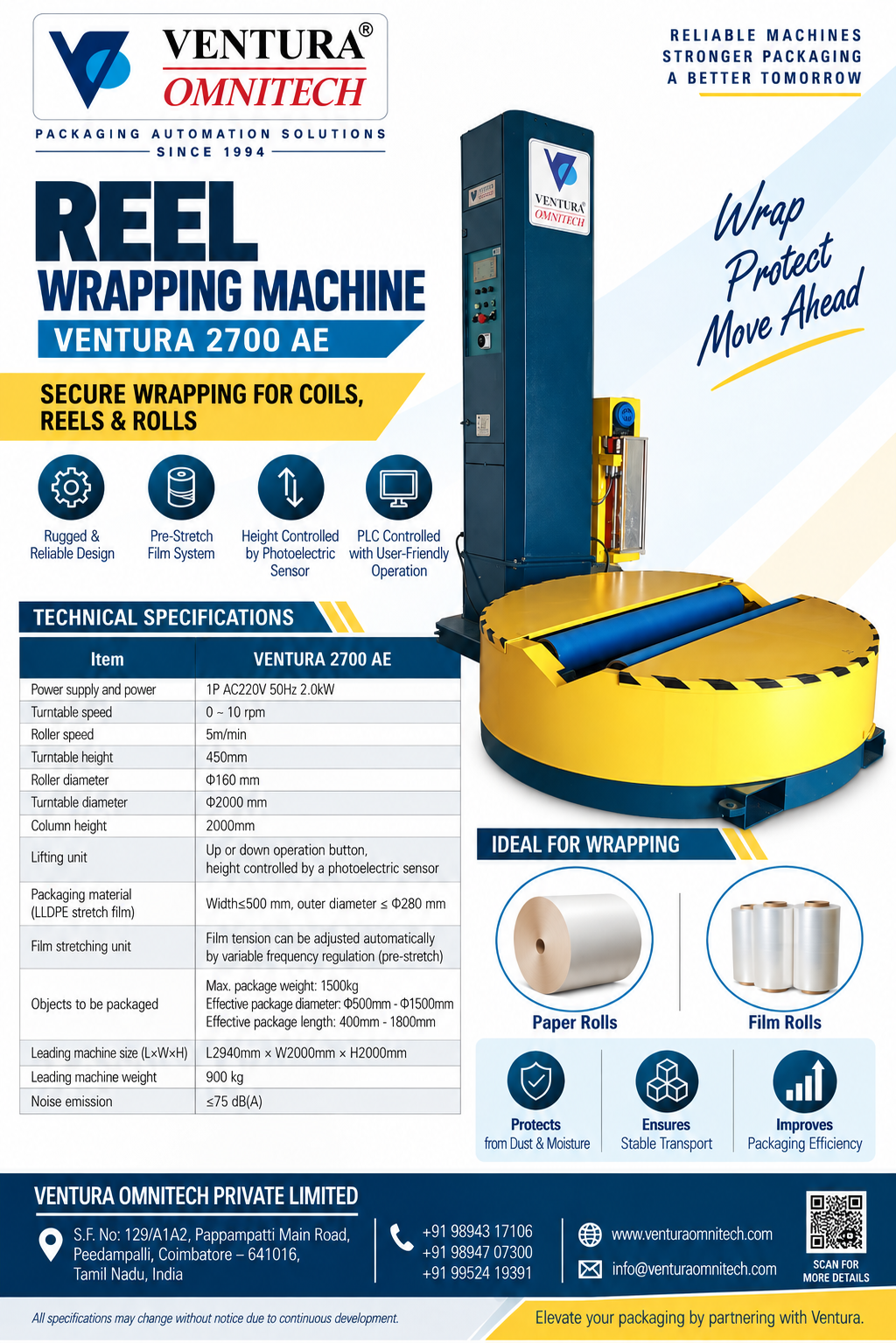

Reel Wrapping Machine |
| Model |
VENTURA 2700 AE |
| Application |
Wrapping of Coils, Reels & Rolls |
| Max. Product Weight |
1500 kg |
| Product Diameter |
Ø500–Ø1500 mm |
| Product Height |
400–1800 mm |
| Turntable Diameter |
Ø2000 mm |
| Turntable Height |
450 mm |
| Turntable Speed |
0–10 rpm |
| Roller Diameter |
Ø160 mm |
| Roller Speed |
5 m/min |
| Column Height |
2000 mm |
| Film Type |
LLDPE Stretch Film |
| Film Width |
≤500 mm |
| Film Stretching |
Pre-Stretch System |
| Height Control |
Photoelectric Sensor |
| Control System |
PLC Controlled |
| Power Supply |
1 Phase, 220V, 50Hz |
| Power |
2.0 kW |
| Machine Size |
2940 × 2000 × 2000 mm |
| Machine Weight |
900 kg |
| Optional |
Ejector Mechanism |
| Suitable For |
Cable Reels, Steel Coils, Paper Rolls & Film Rolls |
| Key Benefits |
Reduced Manpower, Consistent Wrapping,
Better Film Utilization, Product Protection
& Improved Packaging Efficiency
|
