| MACHINE & APPLICATION |
| Machine Type |

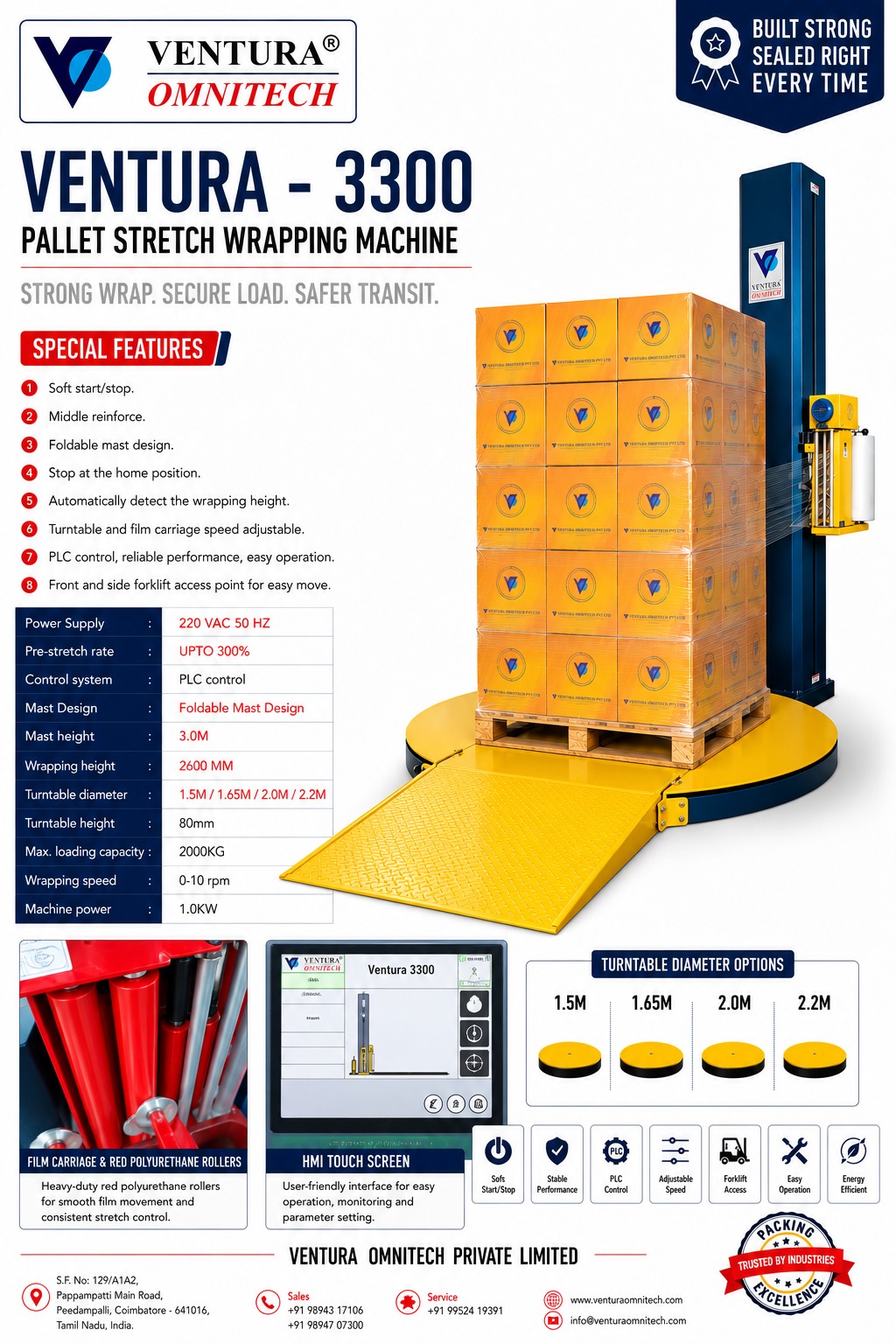

Semi-Automatic / Automatic Pallet Stretch Wrapping Machine |
Reduces manual wrapping effort and provides consistent pallet packaging. |
| Model |
VENTURA 3300 |
Designed for efficient and repeatable industrial pallet wrapping. |
| Application |
Pallet Stretch Wrapping |
Secures palletized products for safer storage, handling and transportation. |
| Suitable Products |
Cartons, Boxes, Bags, Containers & Palletized Products |
Suitable for a wide range of industrial and commercial palletized loads. |
| SPECIAL FEATURES |
| Soft Start / Stop |
Available |
Provides smooth acceleration and stopping for safer load handling. |
| Middle Reinforce |
Available |
Provides additional reinforcement around the middle of the pallet for improved stability. |
| Mast Design |
Foldable Mast Design |
Makes installation, movement and space management easier. |
| Home Position |
Automatic Stop at Home Position |
Provides convenient and repeatable machine operation. |
| Load Height Detection |
Automatic Photoelectric Sensor |
Automatically detects load height for consistent wrapping coverage. |
| Speed Adjustment |
Adjustable Turntable & Film Carriage Speed |
Allows wrapping parameters to be adjusted according to product and load condition. |
| Forklift Access |
Front & Side Forklift Access |
Makes pallet loading and unloading easier and more flexible. |
| MAST & WRAPPING HEIGHT |
| Mast Type |
Fixed / Modular Extended Mast |
Allows configuration according to the required wrapping height. |
| Standard Wrapping Height |
2,000 mm |
Suitable for standard palletized load applications. |
| Optional Mast Heights |
2,400 / 2,600 / 2,800 / 3,000 mm |
Provides flexibility for different pallet load heights. |
| Maximum Custom Mast Height |
Up to 3,600 mm |
Suitable for taller palletized loads requiring increased wrapping coverage. |
| Mast Construction |
Reinforced Steel Profile with Chain / Belt Driven Carriage |
Strong construction supports reliable industrial operation. |
| Carriage Lift Type |
Chain / Belt Driven |
Provides controlled vertical movement of the film carriage. |
| FILM & STRETCHING SYSTEM |
| Film Type |
Stretch Film |
Provides secure unitization and helps protect the load. |
| Pre-Stretch Rate |
Up to 300% |
Helps maximize film utilization and reduce unnecessary film consumption. |
| Film Carriage Speed |
Adjustable |
Allows wrapping performance to be matched to packaging requirements. |
| TURNTABLE & LOAD CAPACITY |
| Turntable Diameter |
1,500–1,650 mm |
Suitable for palletized loads within the specified turntable range. |
| Turntable Height |
80–100 mm |
Low-profile construction makes pallet loading more convenient. |
| Turntable Speed |
0–15 RPM |
Variable speed provides better control over wrapping quality and load stability. |
| Maximum Load Weight |
Up to 2,000 kg |
Suitable for heavy industrial palletized loads. |
| Maximum Pallet Size |
1,200 × 1,200 mm |
Suitable for standard industrial pallet dimensions. |
| CONTROL & OPERATION |
| Control System |
PLC Controlled |
Provides reliable and consistent automated wrapping performance. |
| HMI |
User-Friendly HMI Touch Screen |
Makes operation, monitoring and parameter setting simple and convenient. |
| Load Height Setting |
Automatic Detection / Manual Override |
Provides automatic operation with manual adjustment when required. |
| POWER & ELECTRICAL |
| Power Supply |
213–240 V, Single Phase, 50/60 Hz |
Suitable for standard single-phase electrical supply. |
| Power Consumption |
1.5–2.5 kW |
Power requirement depends on machine configuration and mast height. |
| Motor Type |
AC Motors – Turntable & Carriage |
Reliable motor arrangement for regular industrial packaging operation. |
| MACHINE DIMENSIONS & WEIGHT |
| Machine Length & Width |
Approx. 2,400 × 1,500 mm |
Designed for practical industrial floor-space utilization. |
| Machine Height |
Depends on Selected Mast Height |
Allows configuration according to available installation height. |
| Machine Weight |
700–1,000 kg |
Robust construction provides stability during wrapping operation. |
| CUSTOMER BENEFITS |
| Manpower Saving |
Automated Wrapping Process |
Reduces manual wrapping requirements and operator effort. |
| Film Cost Optimization |
Up to 300% Pre-Stretch |
Helps improve film utilization and minimize unnecessary film consumption. |
| Packaging Consistency |
PLC + Automatic Height Detection |
Provides repeatable and uniform wrapping quality. |
| Load Stability |
Strong Stretch Wrapping |
Helps keep packages securely together during transportation. |
| Product Protection |
Stretch Film Protection |
Helps protect packaged products from dust, moisture and handling exposure. |
| Productivity |
Automated Wrapping Cycle |
Improves packaging workflow and reduces time spent on manual wrapping. |
| Flexible Configuration |
Multiple Mast Options |
Allows configuration according to pallet dimensions and wrapping height. |
| Heavy-Duty Capability |
Up to 2,000 kg |
Suitable for demanding industrial palletized loads. |
| Easy Material Handling |
Front & Side Forklift Access |
Simplifies pallet loading and unloading. |
