| MACHINE & MODEL |
| Machine Type |

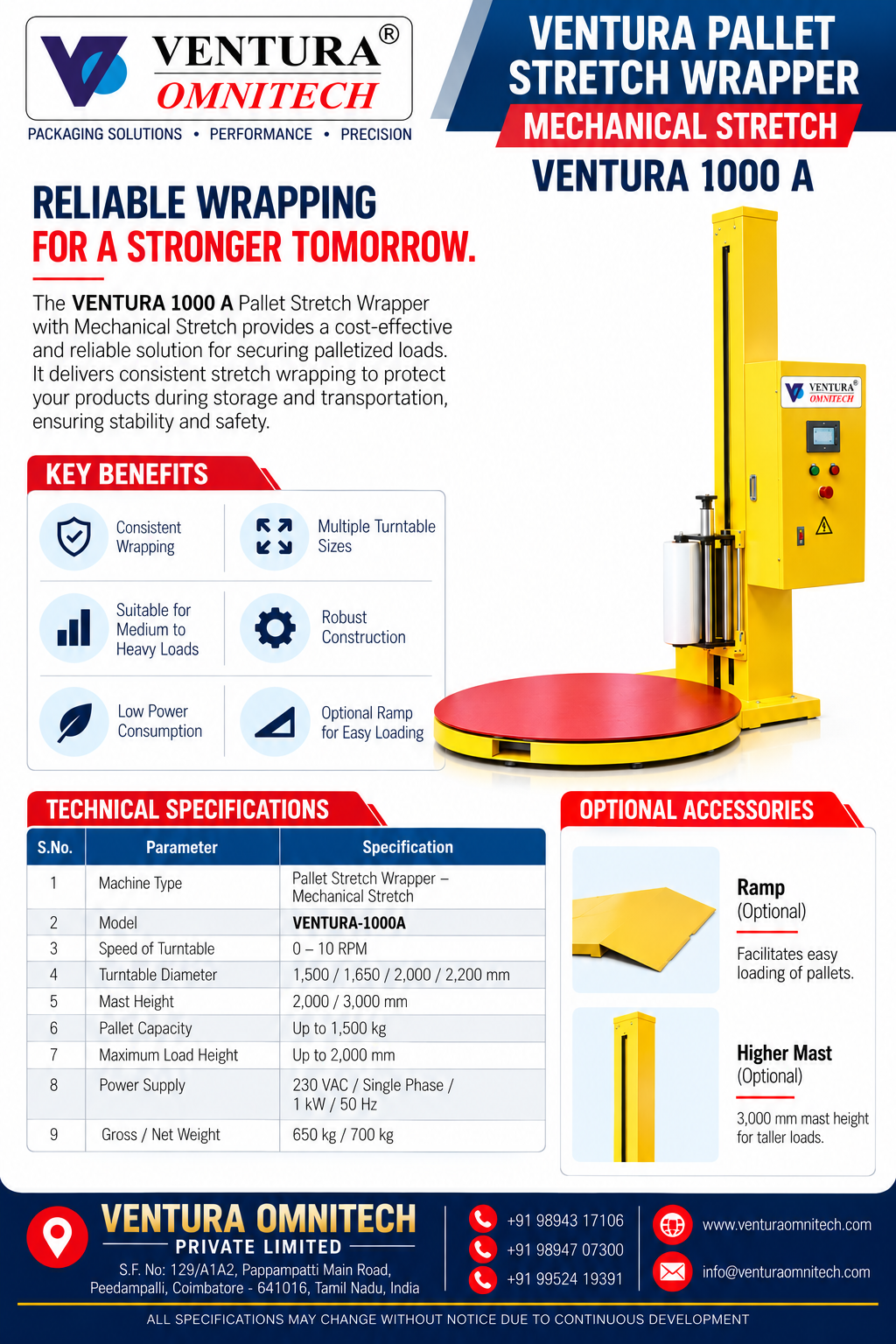

Pallet Stretch Wrapper – Mechanical Stretch |
Designed for secure and efficient stretch wrapping of palletized loads with mechanical film stretching. |
| Model |
VENTURA-1000A |
Provides a dedicated configuration for reliable pallet wrapping applications. |
| Speed of Turntable |
0 – 10 RPM |
Controlled turntable speed allows consistent wrapping according to the load requirement. |
| Turntable Diameter |
1,500 mm / 1,650 mm / 2,000 mm / 2,200 mm |
Multiple turntable sizes provide flexibility for different pallet dimensions. |
| MAST & LOAD CAPACITY |
| Mast Height |
2,000 mm / 3,000 mm |
Provides flexibility to accommodate different pallet load heights. |
| Pallet Capacity |
Up to 1,500 kg |
Suitable for wrapping medium to heavy palletized loads. |
| Maximum Load Height |
Up to 2,000 mm |
Provides effective wrapping coverage for standard palletized loads. |
| POWER & MACHINE SPECIFICATIONS |
| Power Supply |
230 VAC / Single Phase / 1 kW / 50 Hz |
Suitable for standard single-phase electrical supply with low power consumption. |
| Gross / Net Weight |
650 kg / 700 kg |
Robust machine construction provides stability during pallet wrapping operation. |
| OPTIONAL ACCESSORIES |
| Ramp |
1 Ramp – Optional |
Facilitates pallet loading onto the turntable where direct floor-level access is required. |
