MACHINE & WRAPPING SPECIFICATIONS
|
| Model |

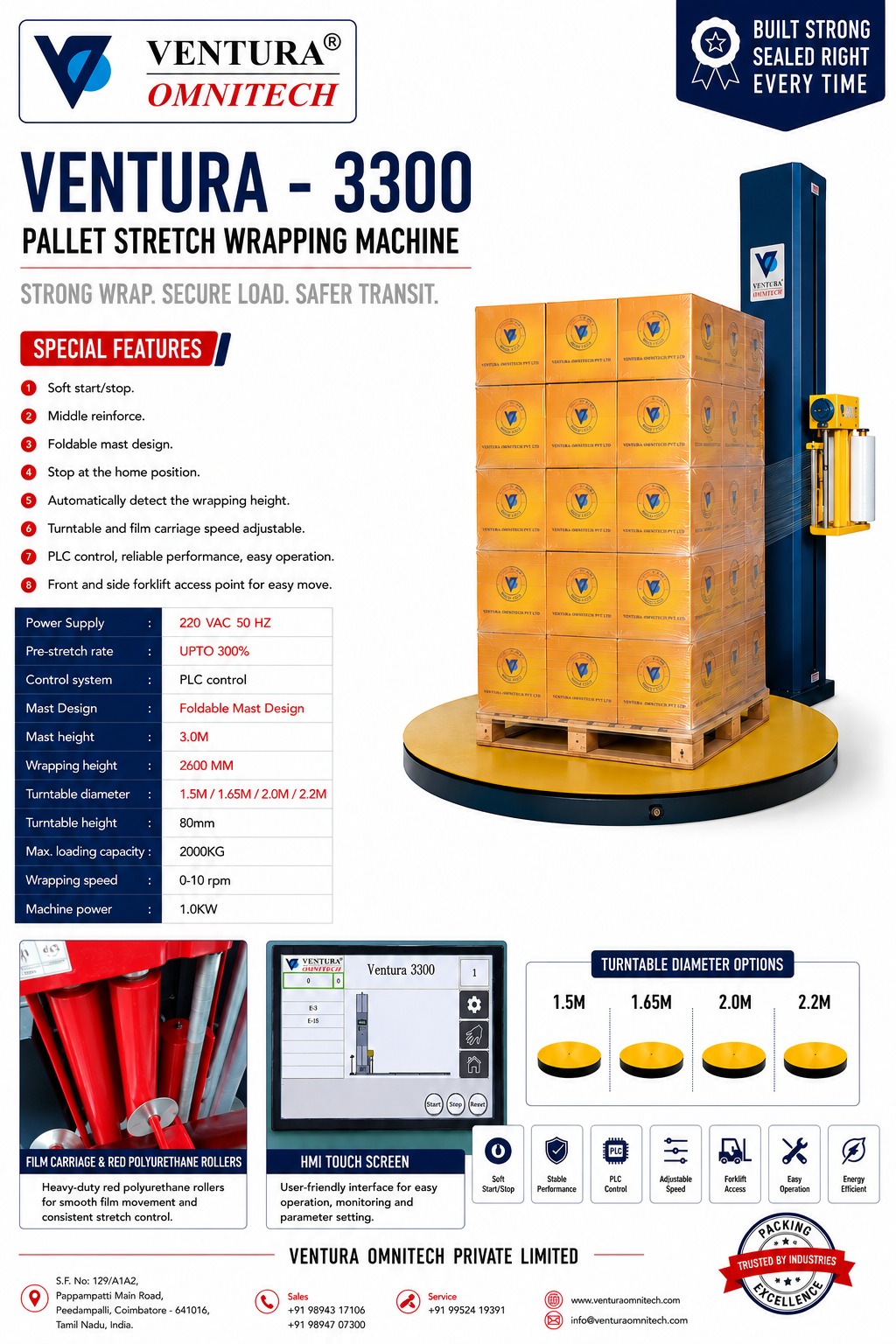

VENTURA - 3300 |
Pallet stretch wrapping machine designed for secure load stabilization and efficient stretch film wrapping. |
| Power Supply |
220 VAC, 50 Hz |
Suitable for the specified electrical supply. |
| Pre-Stretch Rate |
Up to 300% |
High pre-stretch capability helps provide efficient film usage and secure load wrapping. |
| Control System |
PLC Control |
Reliable automated control supports consistent wrapping performance and easy operation. |
| Mast Design |
Foldable Mast Design |
Foldable design supports convenient handling and space-efficient installation. |
| Mast Height |
3.0 m |
Provides the required vertical wrapping range for pallet loads. |
|
LOAD & TURNTABLE SPECIFICATIONS
|
| Wrapping Height |
2600 mm |
Supports wrapping of tall palletized loads up to the specified height. |
| Turntable Diameter |
1.5 m / 1.65 m / 2.0 m / 2.2 m |
Multiple turntable diameter options accommodate different pallet and load sizes. |
| Turntable Height |
80 mm |
Low-profile turntable arrangement supports convenient pallet loading. |
| Max. Loading Capacity |
2000 kg |
Suitable for heavy palletized loads up to the specified capacity. |
| Wrapping Speed |
0–10 rpm |
Adjustable wrapping speed supports controlled and consistent film application. |
|
FILM CARRIAGE & OPERATION
|
| Film Carriage |
Heavy-duty red polyurethane rollers |
Supports smooth film movement and consistent stretch control. |
| Film Carriage Speed |
Adjustable |
Adjustable speed provides flexibility for different pallet wrapping requirements. |
| Wrapping Height Detection |
Automatic detection |
Automatically detects the wrapping height for convenient and consistent operation. |
| HMI Touch Screen |
User-friendly interface for operation, monitoring and parameter setting |
Simplifies machine operation and provides convenient control of wrapping parameters. |
|
KEY FEATURES & BENEFITS
|
| Soft Start / Stop |
Soft start/stop operation |
Provides smooth machine movement during the wrapping cycle. |
| Middle Reinforce |
Middle reinforce function |
Provides additional wrapping reinforcement at the required load position. |
| Home Position |
Automatic stop at home position |
Provides convenient and repeatable machine positioning after wrapping. |
| Forklift Access |
Front and side forklift access points |
Allows easier pallet movement and handling around the machine. |
| Energy Efficiency |
Energy-efficient operation |
Designed to support efficient pallet wrapping while maintaining reliable performance. |
