| MACHINE & APPLICATION |
| Machine Type |

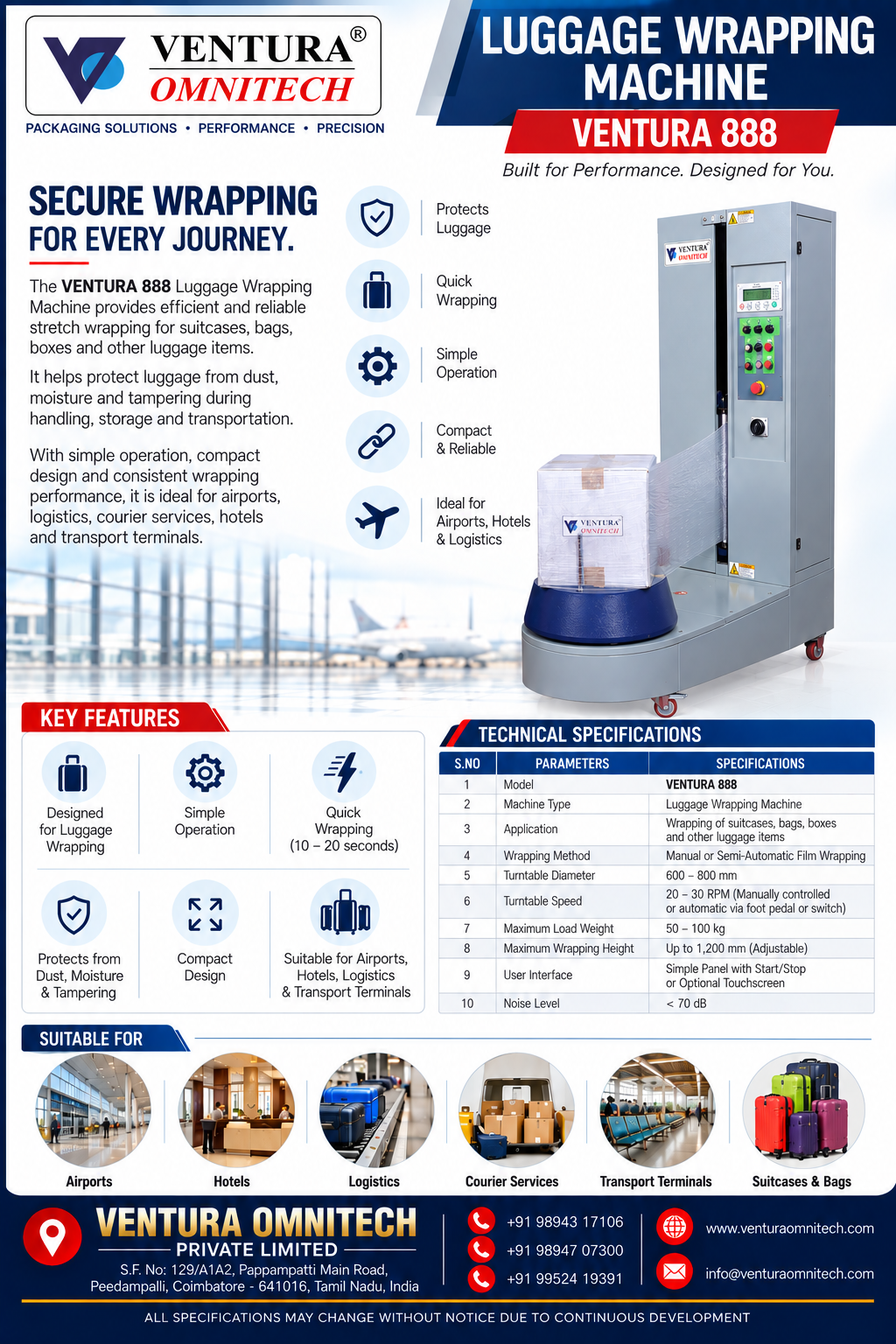

Luggage Wrapping Machine |
Designed specifically for efficient and secure wrapping of luggage and similar items. |
| Application |
Wrapping of suitcases, bags, boxes and other luggage items |
Provides protective wrapping for luggage during handling, storage and transportation. |
| Wrapping Method |
Manual or Semi-Automatic Film Wrapping |
Offers flexible operation according to luggage type, workload and operator preference. |
| Platform Type |
Rotating Turntable with Luggage Holding Guides |
Helps keep luggage securely positioned during the wrapping process. |
| TURNTABLE & LOAD HANDLING |
| Turntable Diameter |
600 – 800 mm |
Compact turntable size is suitable for individual luggage and baggage wrapping. |
| Turntable Speed |
20 – 30 RPM (Manually controlled or automatic via foot pedal or switch) |
Adjustable rotation provides controlled and efficient wrapping of different luggage items. |
| Maximum Load Weight |
50 – 100 kg |
Suitable for handling a wide range of standard luggage sizes and weights. |
| Maximum Wrapping Height |
Up to 1,200 mm (Adjustable) |
Allows accommodation of luggage with different heights and dimensions. |
| CONTROL & OPERATION |
| User Interface |
Simple Panel with Start/Stop or Optional Touchscreen |
Simple controls make the machine easy to operate, while touchscreen control can provide enhanced functionality. |
| Operator Requirement |
1 person for loading and wrapping |
Requires minimal manpower and supports efficient luggage handling. |
| Wrap Time per Luggage |
10 – 20 seconds (Depending on operator skill and wrap count) |
Enables quick luggage processing and improves overall packaging productivity. |
| MACHINE PERFORMANCE |
| Noise Level |
< 70 dB |
Supports a more comfortable working environment during regular operation. |
