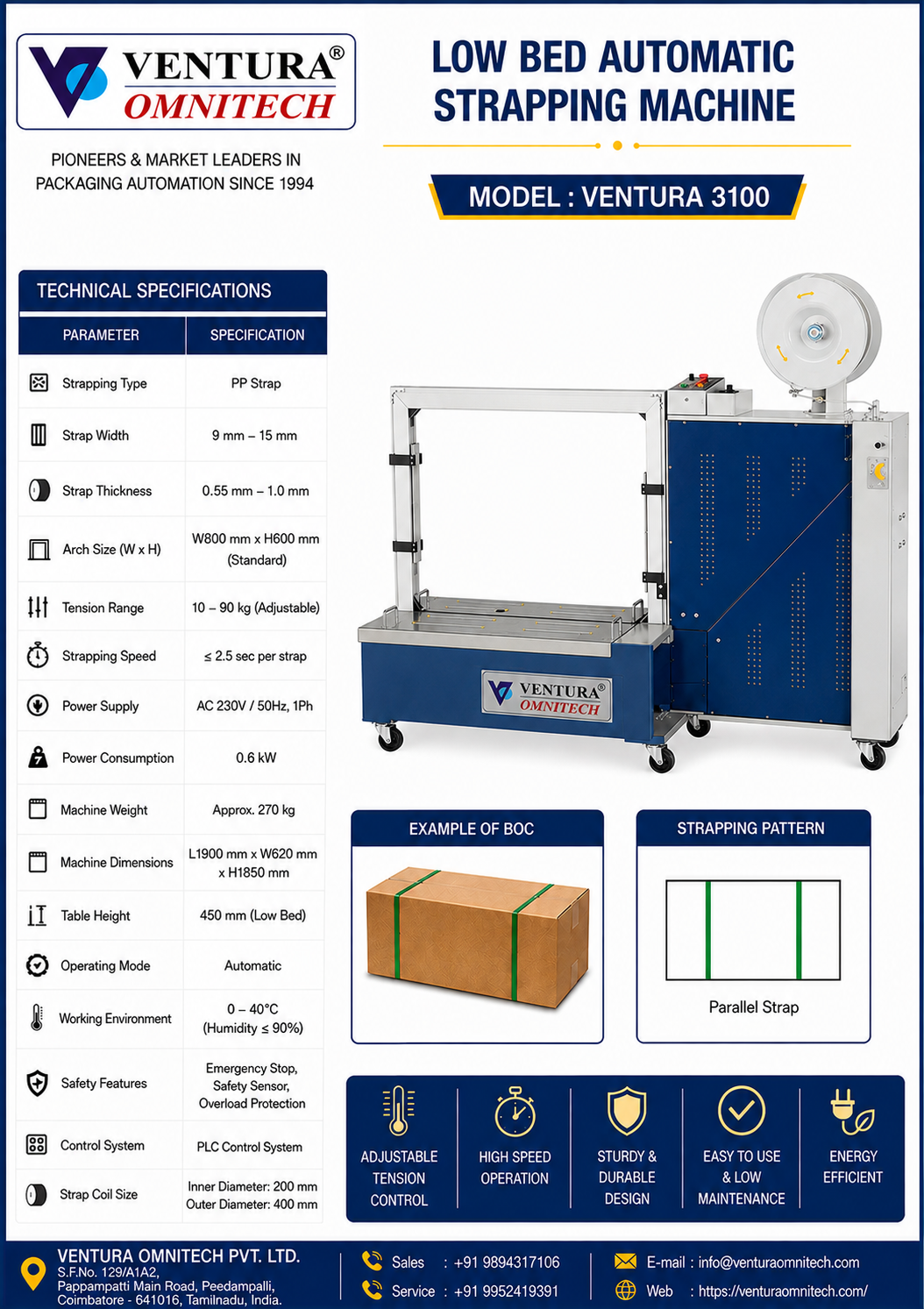

VENTURA LOW BED FULLY AUTOMATIC STRAPPING MACHINE
VENTURA 3100 PR
Description:
| MACHINE & STRAPPING SYSTEM | ||
| Machine Type | Low Bed Fully Automatic Strapping Machine | Low-bed automatic configuration designed for efficient and consistent carton and package strapping. |
| Model | VENTURA 3100PR | Designed for reliable automatic strapping with powered roller conveying. |
| Strap Width | 9 mm / 12 mm / 15 mm | Supports multiple strap widths for flexible packaging applications. |
| Strap Thickness | 0.55 mm – 1.0 mm | Compatible with the specified range of strapping material thicknesses. |
| Strap Coil |
Inner Diameter: 200 mm Outer Diameter: 400–500 mm |
Supports the specified strap coil dimensions for convenient material loading. |
| PACKING PERFORMANCE & PACKAGE RANGE | ||
| Baling Speed | ≤ 2.5 seconds / path | Fast strapping performance helps improve packaging throughput and reduce cycle time. |
| Strapping Force | 0–60 kg, Adjustable | Adjustable force provides controlled and secure strapping for different package requirements. |
| Carton Size |
Minimum: 210 mm (W) × 100 mm (H) Maximum: Inner size of the arch |
Accommodates packages from the specified minimum size up to the available arch opening. |
| Arch Size | 800 mm (W) × 600 mm (H) | Provides a generous strapping opening for a broad range of cartons and packages. |
| Working Table Height | 450 mm | Low-bed working height is suitable for handling packages at a convenient loading level. |
| POWERED ROLLER CONVEYOR | ||
| Conveyor System | Powered Roller Conveyor | Provides powered package movement through the strapping area for smoother automated handling. |
| CONTROL & OPERATION | ||
| Control System | PLC Control System | PLC control supports reliable and consistent automatic strapping operation. |
| Operating Mode | Manual / Foot Switch | Provides convenient operator control according to the packaging workflow. |
| Bottom Adhesion | Hot melt method; Adhesive surface ≥ 90%; Adhesive width ≥ 20%; Deviation of adhesive position ≤ 2 mm | Specified bottom adhesion configuration supports consistent adhesive application. |
| MACHINE DIMENSIONS & ELECTRICAL SPECIFICATIONS | ||
| Power Supply | AC 415 V / 50 Hz / 3 Phase | Industrial three-phase power configuration supports reliable machine operation. |
| Machine Dimensions | L 1905 mm × W 660 mm × H 1750 mm | Defined dimensions help with installation planning and efficient floor-space utilization. |
| Machine Weight | 330 kg | Sturdy machine construction provides stability during continuous operation. |
| Working Noise | ≤ 80 dB(A) | Specified noise level supports a controlled industrial working environment. |
| ENVIRONMENTAL CONDITIONS | ||
| Humidity | ≤ 90% | Specified humidity condition for suitable machine operation. |
| Operating Temperature | 0°C to 40°C | Specified temperature range for reliable machine performance. |
| APPLICATIONS | ||
| Suitable Applications | Cartons and mono cartons; Bottles and jars; FMCG products; Cosmetics; Pharmaceuticals; Electrical and electronic products; Bundled packs and multipacks | Versatile strapping solution for a wide range of industrial and consumer-product packaging applications. |
| KEY CUSTOMER BENEFITS | ||
| High Speed Operation | ≤ 2.5 seconds / path | Helps improve packaging throughput and reduce strapping cycle time. |
| Adjustable Tension | 0–60 kg adjustable | Provides controlled strap tension for different package requirements. |
| Easy to Use | PLC control with Manual / Foot Switch operation | Supports convenient operation with simple control options. |
| Low Maintenance | Easy-use and low-maintenance design | Helps simplify routine machine care and supports dependable operation. |
| Energy Efficient | Industrial automatic strapping configuration | Designed for efficient operation in continuous packaging environments. |
