| MACHINE & AUTOMATION |
| Machine Type |

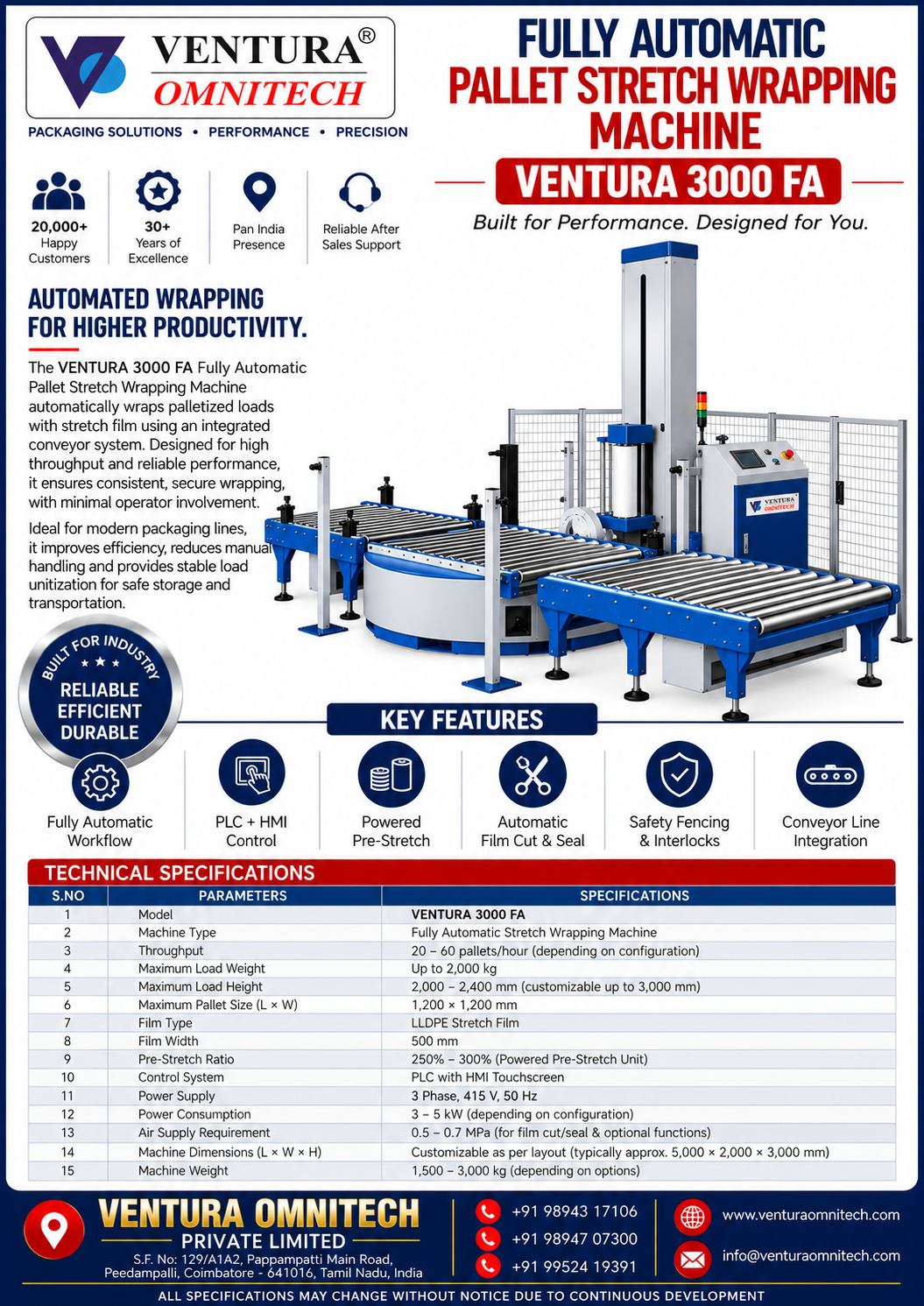

Fully Automatic Stretch Wrapping Machine |
Provides automated pallet wrapping with minimal operator involvement. |
| Operation Mode |
Fully Automatic — No operator intervention required |
Reduces manpower requirements and improves packaging workflow. |
| Automation Level |
Automatic pallet infeed, positioning, wrapping, film cut & seal, pallet discharge |
Creates a continuous automated packaging process and reduces manual handling. |
| Wrapping Method |
Turntable / Rotary Arm / Rotary Ring (based on speed & load type) |
Provides flexibility for different load types and production requirements. |
| Integration |
Compatible with Roller or Chain Conveyor Systems |
Allows smooth integration with automated pallet handling and production lines. |
| Throughput |
20–60 pallets/hour (depending on model and configuration) |
High throughput helps improve packaging productivity and line efficiency. |
| TURNTABLE / ARM & LOAD CAPACITY |
| Turntable / Arm Speed |
Turntable: 0–15 RPM / Rotary Arm: up to 30 RPM |
Variable speed allows the wrapping cycle to match production and load requirements. |
| Maximum Load Weight |
Up to 2,000 kg |
Suitable for heavy industrial palletized loads. |
| Maximum Load Height |
2,000–2,400 mm (customizable up to 3,000 mm) |
Provides flexibility for different pallet and product heights. |
| Maximum Pallet Size (L × W) |
1,200 × 1,200 mm |
Suitable for standard industrial pallet dimensions. |
| FILM & STRETCHING SYSTEM |
| Film Type |
LLDPE Stretch Film |
Provides secure load unitization and helps protect products during storage and transportation. |
| Film Width |
500 mm |
Provides suitable film coverage for pallet wrapping applications. |
| Pre-Stretch Ratio |
250%–300% (Powered Pre-Stretch Unit) |
Helps optimize stretch-film consumption and improve packaging efficiency. |
| Film Cut & Seal System |
Automatic hot wire / clamp & wipe / heat seal (based on model) |
Automatically completes the wrapping cycle for faster and consistent operation. |
| Film Carriage |
Powered Carriage with Variable Tension and Speed Control |
Provides controlled film tension and consistent wrapping performance. |
| Carriage Lift Mechanism |
Chain or Belt Driven |
Provides reliable and controlled vertical film carriage movement. |
| SENSING & CONTROL |
| Photoelectric Sensor |
For Automatic Load Height Detection |
Automatically detects load height for consistent wrapping coverage. |
| Control System |
PLC with HMI Touchscreen |
Provides convenient machine operation, monitoring and parameter adjustment. |
| Wrap Programs |
Customizable — Top wraps, Bottom wraps, Reinforce wraps, Banding wraps |
Allows wrapping cycles to be customized according to product and load requirements. |
| Remote Diagnostics |
Optional — Industry 4.0 / IoT-enabled |
Supports remote monitoring and diagnostics where the optional system is provided. |
| SAFETY |
| Safety Features |
Emergency Stop, Light Curtains, Safety Fencing, Interlocks |
Provides multiple safety measures for safer automated machine operation. |
| POWER & UTILITIES |
| Power Supply |
3 Phase, 415 V, 50 Hz |
Suitable for industrial three-phase electrical installations. |
| Power Consumption |
3–5 kW (depending on model and conveyor system) |
Power requirement varies according to machine configuration and conveyor integration. |
| Air Supply Requirement |
0.5–0.7 MPa (for film cut/seal & optional top press) |
Provides the required pneumatic supply for applicable automatic functions. |
| MACHINE DIMENSIONS & WEIGHT |
| Machine Dimensions (L × W × H) |
Customizable as per layout (typically ~5,000 × 2,000 × 3,000 mm) |
Layout-based customization helps optimize the machine for available production-floor space. |
| Machine Weight |
1,500–3,000 kg (varies with type and options) |
Heavy-duty construction provides stability for automated industrial operation. |
