| CARTON HANDLING & MACHINE CONFIGURATION |
| Machine Type |

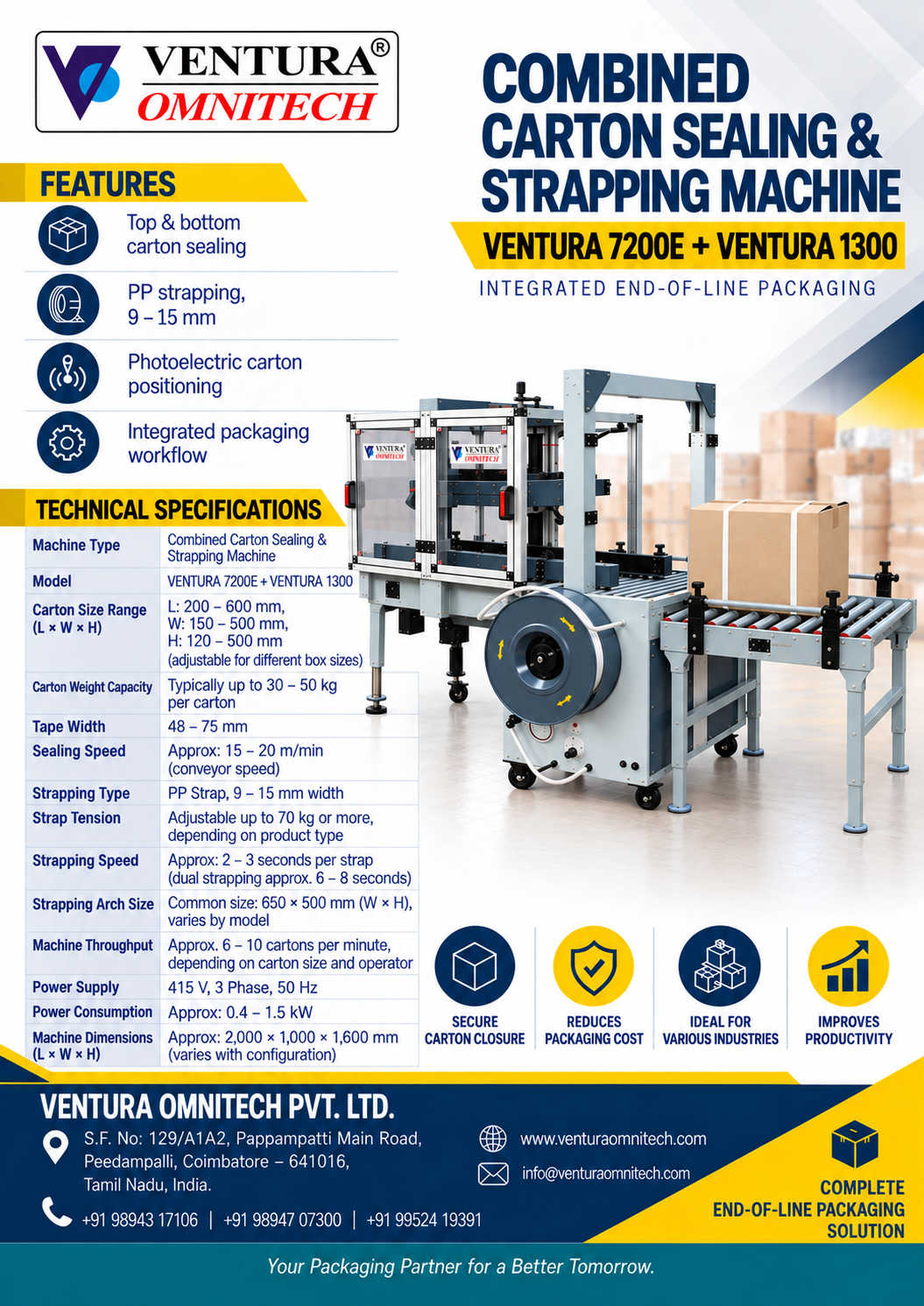

Combined Carton Sealing & Strapping Machine |
Combines carton sealing and strapping in one integrated packaging solution, reducing manual handling between operations. |
| Model |
VENTURA 7200E + VENTURA 1300 |
Integrated configuration combines carton taping with automatic arch-type strapping for efficient end-of-line packaging. |
| Carton Size Range |
L: 200–600 mm, W: 150–500 mm, H: 120–500 mm; adjustable for different box sizes |
Handles a broad range of carton sizes and provides flexibility for different packaging requirements. |
| Carton Weight Capacity |
Typically up to 30–50 kg per carton |
Suitable for medium-weight cartons used across various industrial packaging applications. |
| CARTON TAPING SYSTEM |
| Taping Head Type |
Top & Bottom Taping using BOPP / Kraft Tape |
Provides secure closure of cartons from both top and bottom for reliable product containment. |
| Tape Width |
48 – 75 mm |
Supports commonly used carton sealing tape widths for different packaging applications. |
| Taping Speed |
Approximately 15–20 m/min conveyor speed; taping per carton approximately 1.5–2.5 seconds |
Fast carton sealing helps improve packaging-line productivity. |
| STRAPPING SYSTEM |
| Strapping Type |
PP Strap, 9–15 mm width |
Provides secure external reinforcement of cartons after sealing. |
| Strap Tension |
Adjustable up to 70 kg or more, depending on product type |
Allows strap tension to be matched to carton weight and packaging requirements. |
| Strapping Speed |
2–3 seconds per strap; dual strapping approximately 6–8 seconds |
Efficient strapping cycles support higher packaging throughput. |
| Strapping Arch Size |
Common size: 650 × 500 mm (W × H), varies by model |
Provides flexibility for accommodating different carton dimensions. |
| PRODUCTIVITY & CONTROL |
| Machine Throughput |
Around 6–10 cartons per minute, depending on operator and carton size |
Supports efficient end-of-line packaging for regular carton production. |
| Control System |
PLC or electronic control with touch panel; includes strapping cycle and tape length settings |
Provides convenient control of machine parameters and repeatable packaging cycles. |
| Sensor System |
Photoelectric sensors for carton position detection |
Ensures accurate carton positioning for precise taping and strapping. |
| Height Adjustment |
Adjustable table height, e.g. 500–750 mm |
Allows the machine to adapt to different conveyor layouts and working conditions. |
| POWER & MACHINE SPECIFICATIONS |
| Power Supply |
415 V Three Phase, 50 Hz |
Provides flexibility for integration with different industrial electrical supplies. |
| Power Consumption |
0.4 – 1.5 kW |
Supports economical operation with controlled power consumption. |
| Machine Dimensions (L × W × H) |
Approximately 2,000 × 1,000 × 1,600 mm; varies with configuration |
Configuration flexibility allows the system to be adapted to available packaging-line space. |
| OPTIONAL FEATURES & INTEGRATION |
| Automatic Carton Size Detection |
Optional |
Can reduce manual adjustments and improve changeover efficiency between carton sizes. |
| Multiple Strapping Positions |
Optional |
Provides flexibility to apply straps according to different carton securing requirements. |
| Stainless-Steel Frame |
Optional |
Provides an alternative construction suitable for applications requiring enhanced corrosion resistance. |
| Wheels |
Optional |
Facilitate machine movement and positioning within the packaging area. |
| Infeed / Outfeed Conveyors |
Optional |
Supports seamless integration with upstream and downstream packaging equipment. |
