| MACHINE & APPLICATION |
| Machine Type |

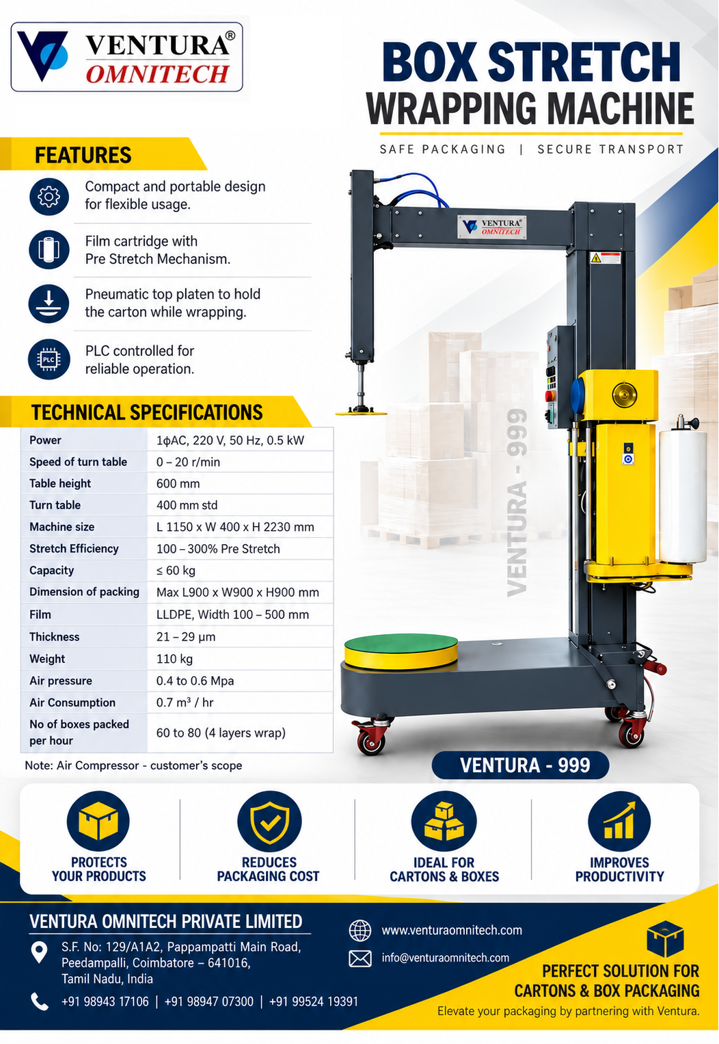

Box Stretch Wrapping Machine |
Designed for efficient stretch wrapping of cartons, boxes and compact packages. |
| Model |
VENTURA 999 |
Compact machine configuration suitable for flexible box and carton packaging applications. |
| Application |
Wrapping of cartons, boxes, bundles and small packages |
Provides secure packaging and helps protect products during storage and transportation. |
| Machine Design |
Compact and portable design |
Easy to position and suitable for flexible use in different packaging areas. |
| Turntable |
400 mm standard diameter |
Suitable for compact box and carton wrapping applications. |
| Turntable Height |
600 mm |
Provides convenient working height for box wrapping operations. |
| Turntable Speed |
0 – 20 RPM |
Variable speed allows the wrapping process to be adjusted according to the product. |
| FILM & PRE-STRETCH SYSTEM |
| Film Carriage |
Film cartridge with Pre-Stretch Mechanism |
Provides controlled film application and efficient stretch film usage. |
| Stretch Efficiency |
100% – 300% Pre-Stretch |
Helps reduce film consumption while maintaining effective product protection. |
| Film Type |
LLDPE Stretch Film |
Provides reliable wrapping and secure containment of packaged products. |
| Film Width |
100 – 500 mm |
Allows the machine to accommodate different film widths for various applications. |
| Film Thickness |
21 – 29 microns |
Suitable film thickness range for secure and economical packaging. |
| LOAD HANDLING & TOP PRESS |
| Capacity |
Up to 60 kg |
Suitable for wrapping individual cartons and compact packaged loads. |
| Packaging Dimension |
Maximum 900 mm × 900 mm × 900 mm |
Accommodates a practical range of carton and box sizes. |
| Top Platen |
Pneumatic top platen to hold the carton while wrapping |
Stabilizes the carton during rotation and helps achieve secure, consistent wrapping. |
| Air Pressure |
0.4 – 0.6 MPa |
Provides the required pneumatic force for reliable top-platen operation. |
| CONTROL & OPERATION |
| Control System |
PLC Controlled |
Provides reliable and consistent machine operation. |
| Wrapping Operation |
Automatic stretch film wrapping with adjustable turntable speed |
Improves wrapping consistency and reduces manual packaging effort. |
| Packaging Capacity |
60 – 80 boxes per hour (layers wrap) |
Supports higher packaging productivity for regular box-wrapping operations. |
| POWER & MACHINE SPECIFICATIONS |
| Power Supply |
1 Phase AC, 220 V, 50 Hz |
Suitable for standard single-phase electrical supply. |
| Power Consumption |
0.5 kW |
Low power requirement supports economical operation. |
| Air Consumption |
0.7 m³/hr |
Efficient pneumatic air usage for the top-platen system. |
| Machine Dimensions (L × W × H) |
1,150 mm × 400 mm × 2,230 mm |
Compact footprint helps save valuable packaging-floor space. |
| Machine Weight |
110 kg |
Lightweight construction allows easier machine positioning and installation. |
| KEY CUSTOMER BENEFITS |
| Product Protection |
Secure stretch film wrapping with pneumatic top platen |
Helps protect cartons and boxes from shifting, dust and handling-related damage. |
| Cost Reduction |
Up to 300% Pre-Stretch |
Improves film utilization and can reduce packaging material consumption. |
| Productivity |
60 – 80 boxes per hour |
Improves packaging throughput compared with fully manual wrapping. |
| Operational Reliability |
PLC controlled operation with compact industrial construction |
Provides dependable performance for regular carton and box packaging applications. |
