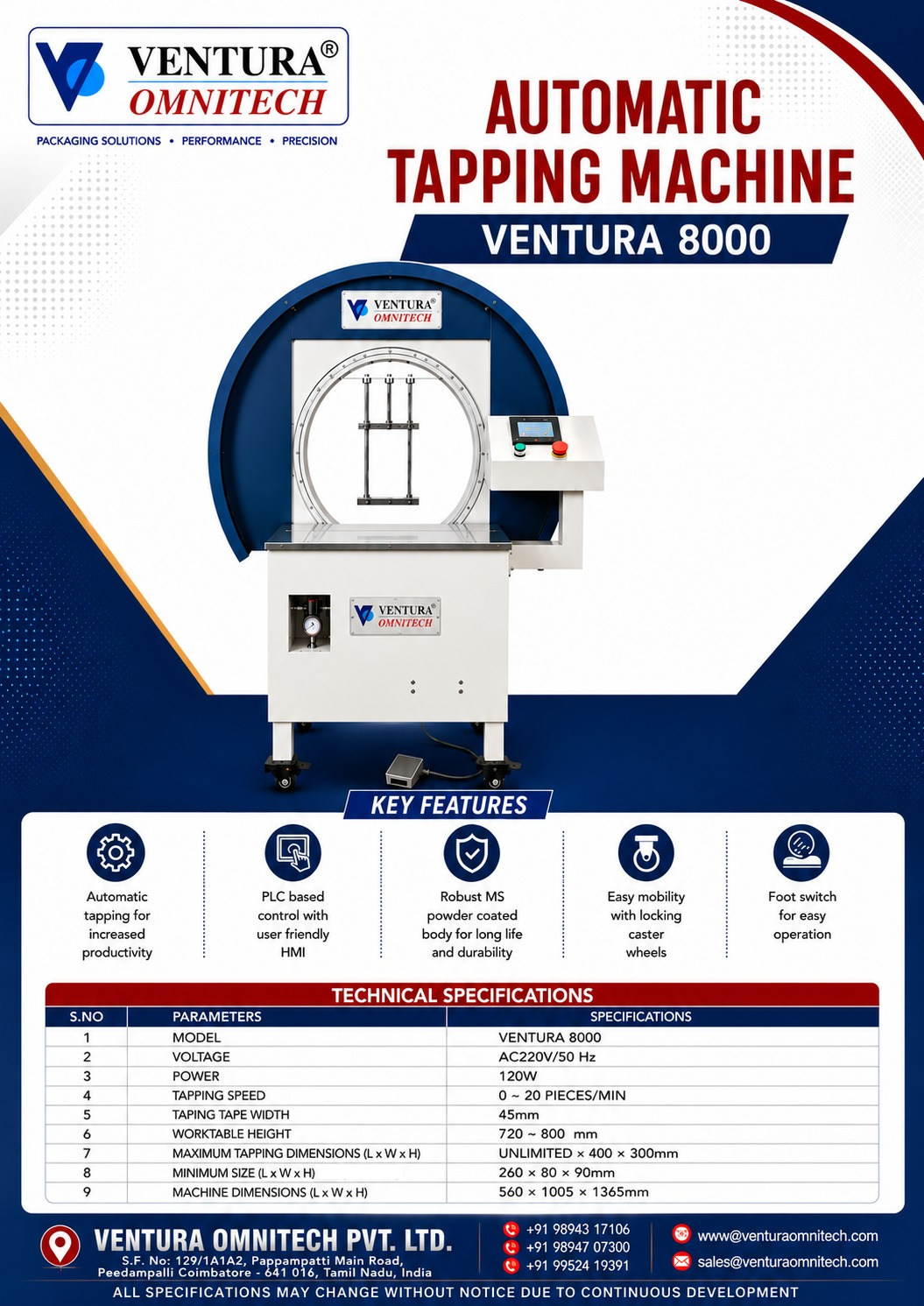

VENTURA AUTOMATIC TAPPING MACHINE
VENTURA 8000
Description:
| MACHINE & APPLICATION | ||
| Machine Type | Automatic Tapping Machine | Automatic tapping operation helps improve packaging productivity and consistency. |
| Model | VENTURA 8000 | Designed for automated carton tapping applications. |
| Tapping Speed | 0–20 pieces/min | Adjustable operating speed supports efficient carton tapping. |
| TAPPING & CARTON SPECIFICATIONS | ||
| Tapping Tape Width | 45 mm | Designed for the specified 45 mm tapping tape. |
| Worktable Height | 720–800 mm | Adjustable working height provides flexibility for different operating requirements. |
| Maximum Tapping Dimensions |
Unlimited × 400 × 300 mm L × W × H |
Supports the specified maximum carton tapping dimensions. |
| Minimum Size |
260 × 80 × 90 mm L × W × H |
Accommodates cartons from the specified minimum size range. |
| CONTROL & KEY FEATURES | ||
| Control System | PLC-Based Control with User-Friendly HMI | Simplifies machine operation and control. |
| Operation | Foot Switch Operation | Provides convenient operation for the operator. |
| Construction | Robust MS Powder-Coated Body | Heavy-duty construction supports long service life and durability. |
| Mobility | Locking Caster Wheels | Easy mobility and secure positioning during operation. |
| POWER & MACHINE DIMENSIONS | ||
| Voltage | AC 220 V / 50 Hz | Designed for the specified electrical supply. |
| Power | 120 W | Low specified power requirement for the machine. |
| Machine Dimensions |
560 × 1005 × 1365 mm L × W × H |
Compact machine dimensions support efficient use of production space. |
