MACHINE & CARTON ERECTION
|
| Model |

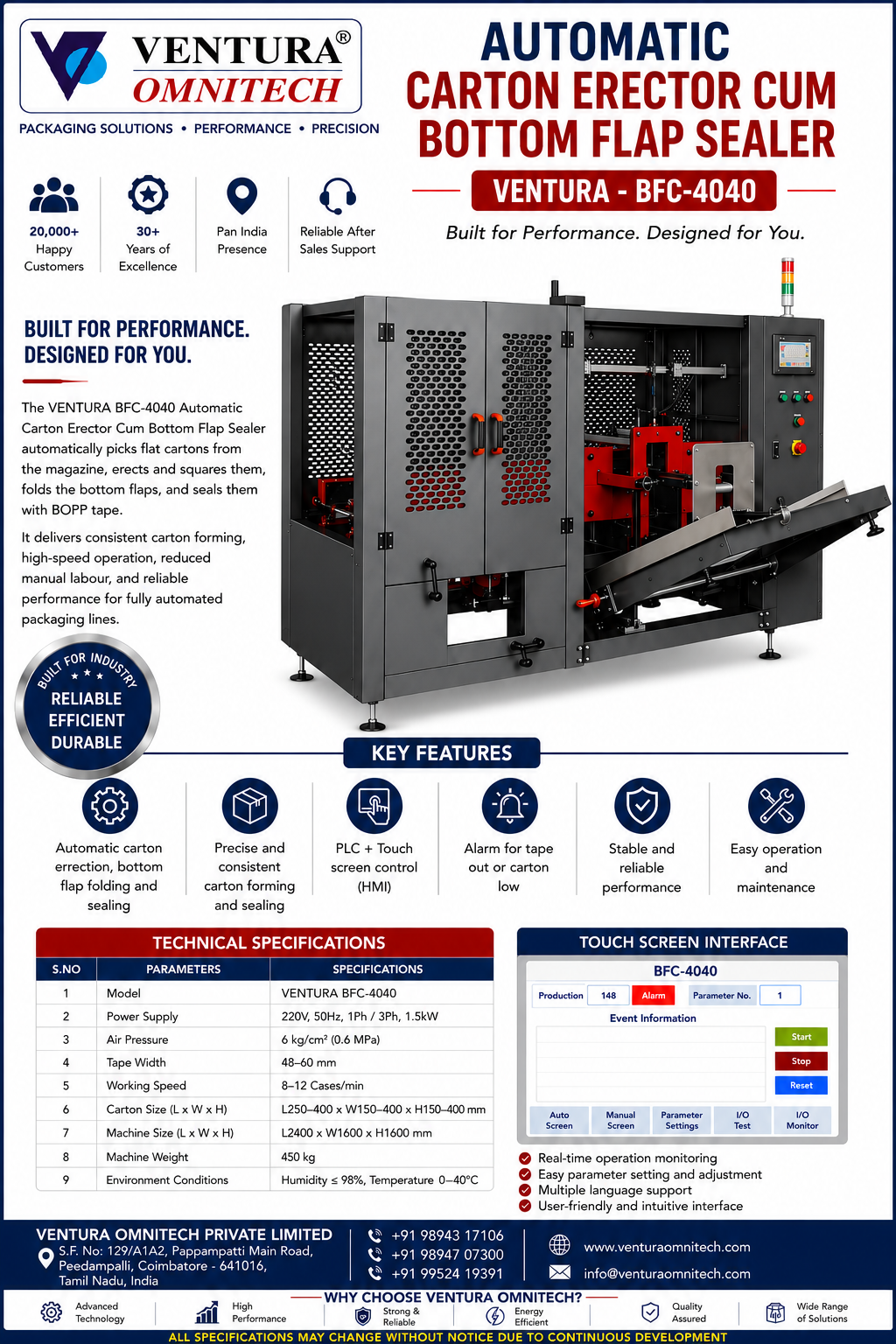

VENTURA BFC-4040 |
Automatic carton erector cum bottom flap sealer designed for continuous and reliable carton forming and sealing. |
| Carton Erection |
Automatically picks flat cartons from the magazine, erects and squares them |
Automates carton forming and reduces manual carton preparation work. |
| Bottom Flap Sealing |
Folds bottom flaps and seals them with BOPP tape |
Provides consistent bottom flap closing and sealing for reliable carton preparation. |
| Working Speed |
8–12 Cases/min |
High-speed carton forming supports improved productivity in automated packaging lines. |
|
CARTON & TAPE SPECIFICATIONS
|
| Carton Size (L × W × H) |
L250–400 × W150–400 × H150–400 mm |
Supports a broad carton size range for flexible packaging applications. |
| Tape Width |
48–60 mm |
Compatible tape width range supports dependable bottom flap sealing. |
|
CONTROL & AUTOMATION
|
| Control System |
PLC + Touch Screen Control (HMI) |
User-friendly HMI enables convenient operation, monitoring and parameter adjustment. |
| Operation Monitoring |
Real-time operation monitoring |
Provides clear operating information for easier supervision of the packaging process. |
| Parameter Setting |
Easy parameter setting and adjustment |
Simplifies machine setup and adjustment for consistent production. |
| Language Support |
Multiple language support |
Supports easier operation for different users and working environments. |
|
SAFETY & RELIABILITY
|
| Alarm System |
Alarm for tape out or carton low |
Alerts the operator to important consumable or carton supply conditions. |
| Machine Performance |
Stable and reliable performance |
Supports dependable carton forming and sealing during continuous packaging operations. |
| Operation & Maintenance |
Easy operation and maintenance |
Simplified operation and maintenance help reduce downtime and service effort. |
|
POWER, AIR & MACHINE DIMENSIONS
|
| Power Supply |
220V, 50Hz, 1Ph / 3Ph, 1.5kW |
Designed for standard industrial electrical supply requirements. |
| Air Pressure |
6 kg/cm² (0.6 MPa) |
Specified pneumatic pressure supports reliable machine operation. |
| Machine Size (L × W × H) |
L2400 × W1600 × H1600 mm |
Provides a defined machine footprint for integration into automated packaging lines. |
| Machine Weight |
450 kg |
Robust machine construction supports stable operation. |
| Environment Conditions |
Humidity ≤ 98%, Temperature 0–40°C |
Specified environmental range supports reliable operation under suitable working conditions. |
